Plasma Torch Water Core Sfhy300b Plasma Cutting Machine Spare Parts

Classification: SFHY300B

Product Introduction

Product Description

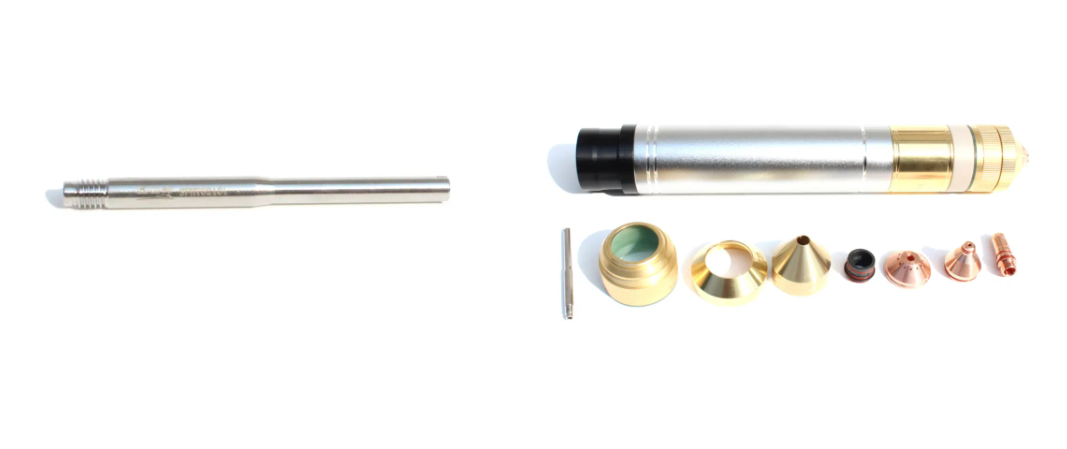

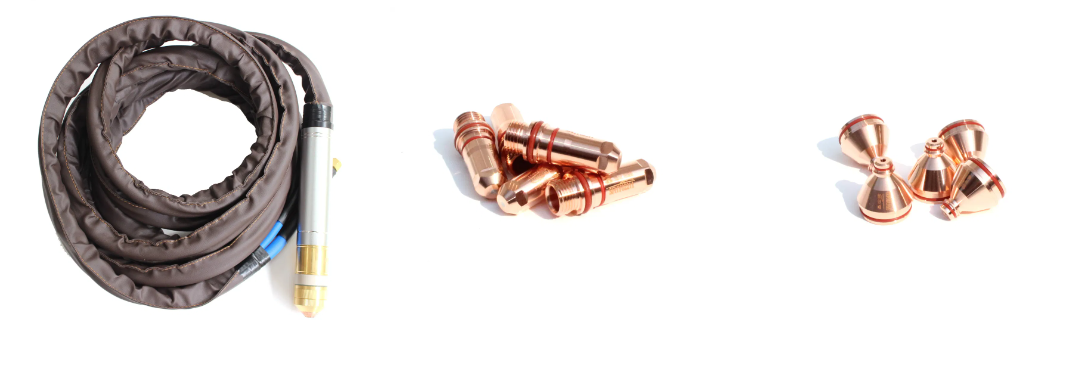

Name		Model		Number			Remarks
Gun head		SFHY-300B
Electrode		SFHY02201
Injector		SFHY02417-28					Aperture: 1.7 1.9 2.3 2.5 2.8
Internal protective sleeve		SFHY02501
Outer protective cover		SFHY02601
Protective cover		SFHY02701
Pressure sleeve of protective cover		SFHY02711
Eddy Current ring		SFHY02301
Water core		SFHY02101
LGK-160/200/300 plasma cutting parameters SFHY-300B series
Cutting plate thickness mm	Cutting current A	Atmospheric pressure(Mpa)	Punch height mm		Cutting tip distance from workpiece cutting height(mm)	Nozzle aperture mm		Reference arc voltage value	Cutting speed mm/min	Remarks
4	100	0.5	4		2	1.7		140	4400
6	100		4		2	1.7		145	3100
8	100		6		3	1.7		150	2200
10	100		6		3	1.7		155	1800
12	160	0.55	6		3	1.9		155	2300
16	160		7		3.5	1.9		160	1500
20	200	0.6	8		4	2.3		152	1600
25	200		11		5.5	2.3		162	1100
30	260		13		.5	2.5		166	950
32	260		13		6	2.5		168	850
35	260		15		7	2.5		172	750
40	300		edge		7	2.8		172	450
50	300				8	2.8		175	300
