SF-QW Track swing welding trolley
Classification: Automatic welding car
The welding car uses battery power supply, especially suitable for field and inconvenient welding occasions.
Product Introduction
Functional characteristics
The welding car uses battery power supply, especially suitable for field and inconvenient welding occasions.

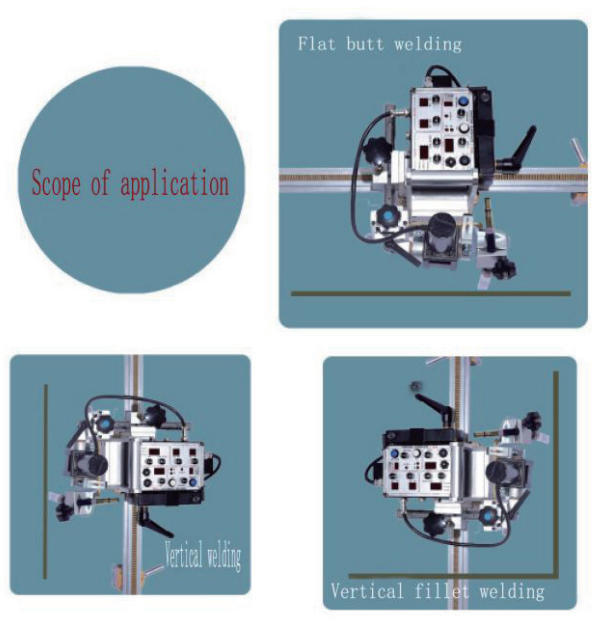

It can realize a variety of positions such as vertical welding, horizontal welding and horizontal welding.
With linear swing function. Various swing parameters such as swing mode, swing amplitude, swing speed, swing center position and left and right residence time can be adjusted.
Automatic 360° adjustment of the torch Angle Standard configuration offers 1.5m long track. The track is miniaturized, lightweight and convenient to move, and can also be docked for extended use.
Technical parameter
|
trolley |
species |
content |
remark |
|
Power source |
DC24V-4AH |
Lithium battery |
|
|
Overall dimension |
400*250*280 |
L*W*H |
|
|
weight |
8.5kg |
|
|
|
Driving mode |
Gear drive |
|
|
|
Travel speed |
0~980mm/min |
Number display |
|
|
Range of welding gun adjustment |
Up and down |
±35mm |
|
|
Front and rear |
±50mm |
||
|
Operating Angle |
45。 |
||
|
Angle of advance |
360。 |
||
|
Controls |
Installation style |
Magnet removal type |
|
|
Overall dimension |
42*29.3*1500 |
W*H*L |
|
|
material |
Aluminum product |
|
|
|
weight |
6kg |
Including |
|
|
Swing mode |
|
||
|
Oscillating |
0~1520mm/min |
||
|
Swing amplitude |
±20mm |
||
|
Left-right residence time |
0~2S |
||
|
Central |
±5mm |
||
