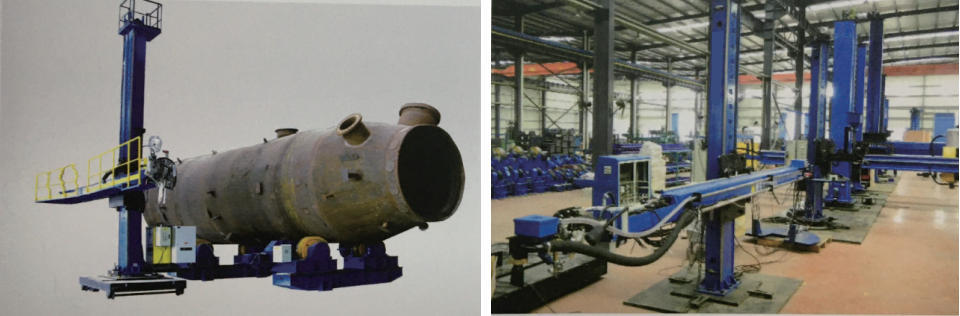

Main Features

Use world famous frequency converter, with wide speed adjusting range and high precision, parameters can be preset and recalled

The boom and column is box-structure designed, compact structure with good rigidity Counterweight-design inside column which ensures the stable and smooth lifting

The multi-protection of mechanic set and electric set ensures the safety of operator and equipment

Optional devices: electric rotation device, walking trolley, retractable boom, etc. Manipulation interface: humanization, simple and convenient

Product Application



Main Technical Parameters

Model	2x2	3x3	4x4	5x5	6x6	7x7	8x8
Boom Lifting Range	2m	3m	4m	5m	6m	7m	8m
Boom Vertical Travel Speed	80-800mm/min(Speed step-less adjusted by converter, digital display)
Boom Horizontal Travel Range	2m	3m	4m	5m	6m	7m	8m
Boom Horizontal Travel Speed	250-2500mm/min(Speed step-less adjusted by converter, digital display)
Trolley Travel Speed	200-2000mm/min(Speed step-less adjusted by converter, digital display)
Column Rotating Speed	0.03-0.75rpm (Speed step-less adjusted by converter, digital display/manual rotation)
Max. Loading Of Boom	100kg		200kg		400kg/600kg
Max. Stretching Of Boom	2950	3950	5100	6100	7250	8300	9300
Min. Stretching Of Boom	950		1100		1250	1300
Trolley Gauge	1430		1730		2000	2500
Input Power	3~380±10% 50/60HZ

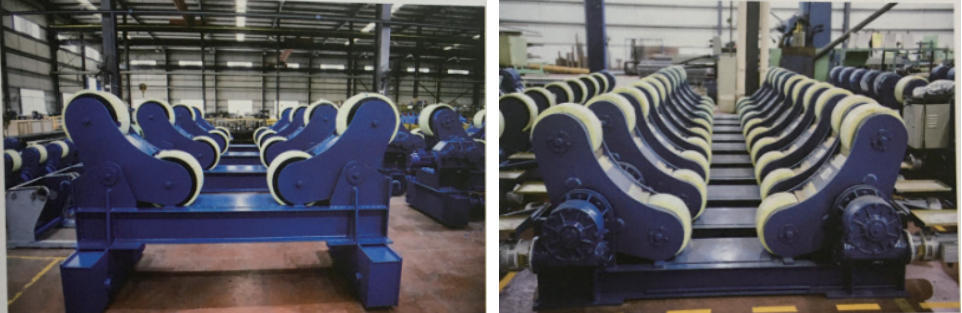

Main Features

There are reserved screw holes to adjust the center distance,which makes it work with different size work-piece

Advanced reducer system configuration,compact structure,high transmission accuracy and efficiency,reliable self.fixing & locking

Use world famous frequency converter,which has good reliability,strong output characteristics and stable rotating speed

Use whole destressing annealing technology,makes the high strength and toughness of structure,ensures the long service life

There are linkage interfaces on machine,makes it convenient to work with welding manipulator

Optional Functions



Main Technical Parameters

Model	Linear Speed	Suited Work-piece Diameter	Motor Power	Turning Rolls Size	Polyurethane Wheel Width	Turning Rolls Structure
	mm/min	mm	KW	（mm ）	（mm ）
KT-3C	100-1000	150-2800	1x0.37	Φ250x130	100	Steel & Polyurethane
KT-5C		150-2800	2x0.25	Φ250x130	100	Steel & Polyurethane
KT-10C		300-3200	2x0.37	Φ300x150	112	Steel & Polyurethane
KT-20C		300-3600	2x0.55	Φ350x170	120	Steel & Polyurethane
KT-30C		300-4500	2x0.75	Φ400x200	120	Steel & Polyurethane
KT-40B		300-4500	2x1.1	Φ400x200	120	Steel & Polyurethane
KT-60A		300-4500	2x1.1	Φ450x200	120	Steel & Polyurethane
KT-80E		800-5500	2x1.5	Φ500×180 (All Steel Wheel)
KT-100K		800-5500	2x2.2	Φ500×200 (All Steel Wheel)

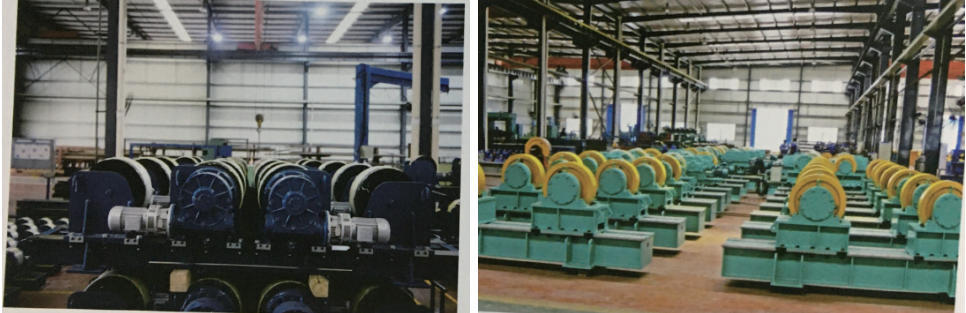

Main Features

The tilt angle of wheels are self-adjusted as per the diameter change of work-piece

Steel & Rubber combined wheels,with strong overload capacity and heavy driving capacity

Advanced reducer system configuration, compact structure,high transmission accuracy and efficiency,reliable self-fixing & locking

Use world famous frequency converter,which has good reliability,strong output characteristics and stable rotating speed

Use whole destressing annealing technology,makes the high strength and toughness of structure,ensures the long service life

There are interfaces on machine,makes it convenient to work with welding manipulator

Optional Functions



Main Technical Parameters

Model	Linear Speed	Suited Work-  piece Diameter	Motor Power	Turning Rolls Size & Structure
	mm/min	mm	KW
ZT-5E	100-1000	500-3300	2X0.25	Φ250×100	Full Polyurethane
ZT-10E		500-3300	2X0.37	Φ250×100	Full Polyurethane
ZT-20E		500-4000	2X0.55	Φ300×130	Full Polyurethane
ZT-30E		500-4500	2X0.75	Φ300×150	Full Polyurethane
ZT-40E		500-4500	2X0.75	Φ300×170	Full Polyurethane
ZT-60E		900-5200	2X1.1	Φ350×200	Full Polyurethane
ZT-80E		900-5500	2X1.5	Φ400×200	Full Polyurethane
ZT-100E		900-5500	2X1.5	Φ450×200	Full Polyurethane
ZT-150		1000-5500	2X2.2	Φ500×200	Full Polyurethane

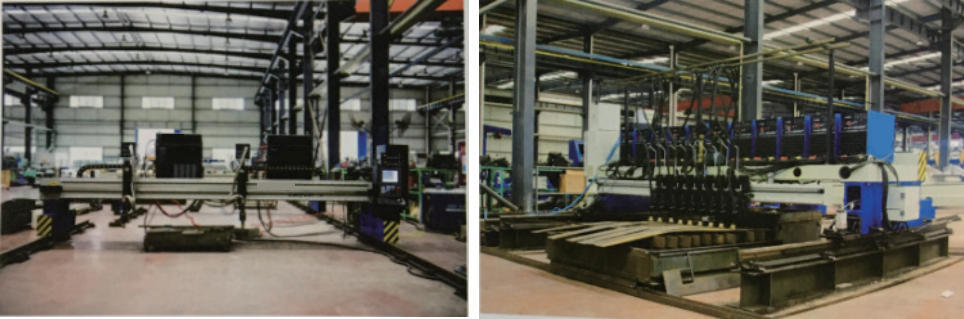

Brief Introduction

Gantry type CNC cutting machine is one of the most popular fabrication cutting equipment. Connecting with the computer, it cuts any shape of workpiece, with highly improves the cutting quality and efficiency, enlarge the usage of raw material and cutting quality stability, it also reduces the labor costs.

Main Features

It is double booms structure, special designing enhances the stable structure

The boom is made from structure parts, which machining with once processing, ensures the strong strength and high precision after longtime use

The driving system adopts fluctuating driving construction design, which is a patent technology from Huayuan

The structure parts use whole destressing annealing technology, makes the high strength and toughness of structure, ensures the long service life

All elements are carefully choosed from international famous brands, ensures the stability



Main Technical Parameters

Model	2500mm	3150mm	4000mm	5000mm	6300mm	7000mm	8000mm	10000mm
Driving Mode	Single Driving (Flame Cutting)			Double Driving
	Double Driving (Plasma Cutting)
Effective Cutting Width (mm)	Span Length-400mm(With single moving part)
Track Length(mm)	According to customer required length
Effective Cutting Length (mm)	Standard:Track length-2M.With electric cleaning device:Track length-2.5M.
No-load Travelling Speed	Single Driving: 0-6000mm/min			-	-	-	-	-
	Double Driving: 0-12000mm/min
Cutting Speed	Flame Cutting: 50-750mm/min
	Plasma Cutting: 50-6000mm/min
Cutting Thickness	Flame Cutting: 6-150mm
	Plasma Cutting: Refer to different plasma power source
Input Power	3~380±10% 50HZ±1%
Torch Up-down Distance	200mm
Standard	ISO9013-2022

Main Features

Finish machining work table to protect the welding spatter, with long service life

Use world famous brand frequency converter, which has wide speed adjusting range and high precision, the parameters can be preset and recorded

Multi protection on mechanism and electric parts, ensures the safety and stability There are some position lines and T-shape slags, makes the easier location

Reliable stability of the complete set, easy to move and install

Product Application

The welding positioneris mainly used to rotate the workpiece of axle, plate, cylinder and ball shape, to get the ideal welding speed and position. It usually work with welding manipulator, welding machines to compose an automatic welding center. It can be also used on manual welding,

assembly or painting of some complex structure work-piece





Main Technical Parameters

Model	Unit	HB-5	HB-10	HB-20	HB-30	HB-50	HB-100
Rated Loading Capacity	T	0.5	1	2	3	5	10
Working Table Diameter	mm	800	1200		1400	1600	1800
Rotating Speed	r/min	0..135-1.35	0.054-0.54		0.05-0.5	0.046-0.46	0.03-0.3
Tilting Speed	r/min	0.6	0.39		0.33		0.22
Tilting Angle	-	0-120。
Max. Centrobaric Distance	mm	200	250		300		400
Max. Eccentricity	mm	150	200				250
Dimension (H ×L×W)	mm	722	955	1096	1204	1495	1870
	mm	880	1450	1800	1900	2200	2700
	mm	751	1020	1220	1370	1600	1880
Input Power	V/Hz	3~380±10% 50/60

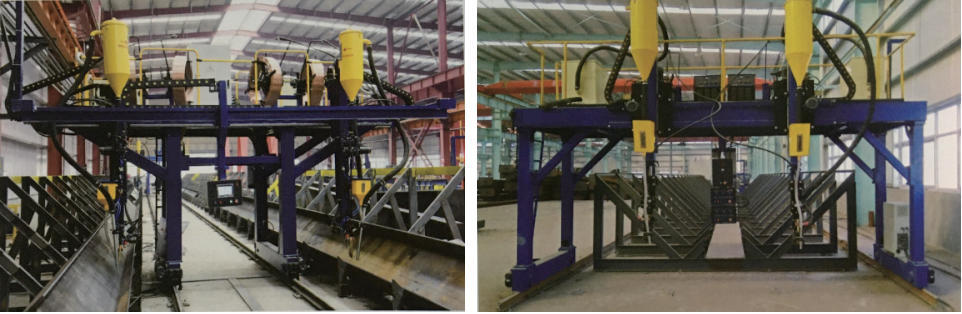

Brief Introduction

Gantry type welding machine is widely used in automatic welding of H-beam steel, box girder, crane beam and so on, it welds two welding seams or more at the same time. The operation is easy and production efficiency is high, reduces the labor cost much.

Main Features

The walking of the gantry frame is controlled by frequency converter, driven by AC motor, step- less speed adjustment

Reliable mechanical weld tracking system

High precision of AC frequency converter

High efficiency of flux feeding-recovering system

Different welding process can be chosen: SAW, MIG, MAG,CO2, etc.

Different welding head can be chosen, adapt different quantity of welding torch





Main Technical Parameters

Item	Parameter
Welding Speed	250-1700mm/min (Refer to different welding process)
Welding Process	SAW,MIG,MAG,CO2
Welding Technology	SAW, TANDEN SAW, MIG,MAG,CO2
Optional Function	Flux feeding-recovering system, welding swing device, water cooling system, etc.
Recommend Welding Power Source	ZD5,ZD7,ZDE and NB series
