SF-SQ Two gun automatic welding car
Classification: Automatic welding car
The welding car uses battery power supply, especially suitable for fi eld and inconvenient welding occasions.
Product Introduction
Functional characteristics
The welding car uses battery power supply, especially suitable for fi eld and inconvenient welding occasions.

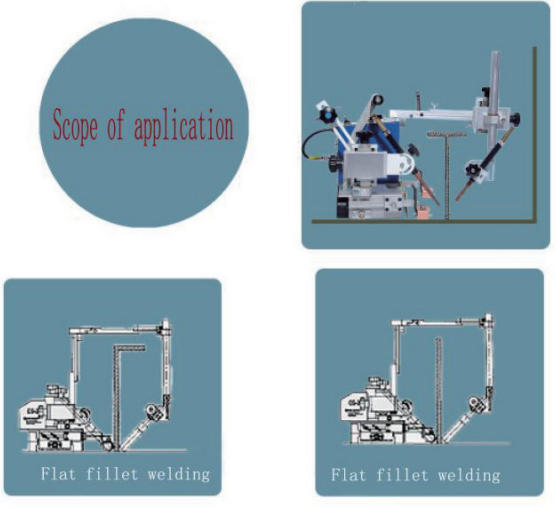

The trolley is a horizontal double gun fi llet welding automatic device It can be welded on one side or both sides and adjust the height of the fixing frame of the trolley according to the height of the workpiece, which is widely used.
When the car is welded on both sides at the same time, the deformation and movement of the general single-side welding can be avoided and the operation is simple, and the unskilled workers can also be welded Magnetic handle is installed for easy use.
Technical parameter
|
trolley |
species |
content |
remark |
|
Power source |
DC24V |
L lithium battery |
|
|
size |
340*460*290 |
L*W*H |
|
|
weight |
10.75 kg |
|
|
|
Move |
Four-wheel drive |
Rubber wheel |
|
|
Travel speed |
0~980mm/min |
scale |
|
|
Welding gun |
Up and down |
40mm |
|
|
Front and rear |
40mm |
||
|
Operating Angle adjustment range |
Plus or minus 45。 |
||
|
Angle adjustment range |
360。 |
||
|
Controls |
Operating |
Power lamp |
|
|
Start of walk |
green |
||
|
Walking stop |
red |
||
|
Travel direction selection |
Left or right |
||
|
Travel speed |
Increase clockwise |
||
|
No.1 Welding/non- welding options |
|
||
|
No.2 Welding/non- welding options |
|
