SF-H5 Automatic welding car
Classification: Automatic welding car
High traction: The use of four-wheel drive + strong magnetic enhance the reliability of the copying operation, and increase the traction, to ensure smooth operation.
Product Introduction
Functional characteristics
High traction: The use of four-wheel drive + strong magnetic enhance the reliability of the copying operation, and increase the traction, to ensure smooth operation.
Two-way walking: The direction switch can realize the operation of the left and right directions.
Easy operation: the car is equipped with an induction stop switch at both ends, and the car can be automatically stopped after welding, which is convenient for one worker to operate multiple equipment at the same time.

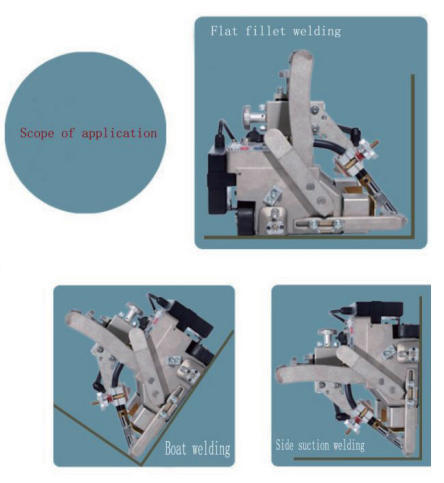

Trackless copying: When fillet welding is done, no special track or similar mechanism is required, only the length of two copying arms needs to be adjusted to make the copying wheel close to the vertical plate, and the Angle welder can automatically walk along the vertical plate
Stepless speed regulation: DC brushless motor is selected, and the speed is continuously adjustable in the range of 0.1~1.3 m/min.
Magnetic controller: One side is equipped with a magnetic controller for easy
Technical parameter
|
trolley |
species |
content |
remark |
|
Power source |
DC24V |
L lithium battery |
|
|
size |
340*460*290 |
L*W*H |
|
|
weight |
10.75 kg |
|
|
|
Move |
Four-wheel drive |
Rubber wheel |
|
|
Travel speed |
0~980mm/min |
scale |
|
|
Welding gun |
Up and down |
40mm |
|
|
Front and rear |
40mm |
||
|
Operating Angle adjustment range |
Plus or minus 45。 |
||
|
Angle adjustment range |
360。 |
||
|
Controls |
Operating |
Power lamp |
|
|
Start of walk |
green |
||
|
Walking stop |
red |
||
|
Travel direction selection |
Left or right |
||
|
Travel speed |
Increase clockwise |
||
|
No.1 Welding/non- welding options |
|
||
|
No.2 Welding/non- welding options |
|
